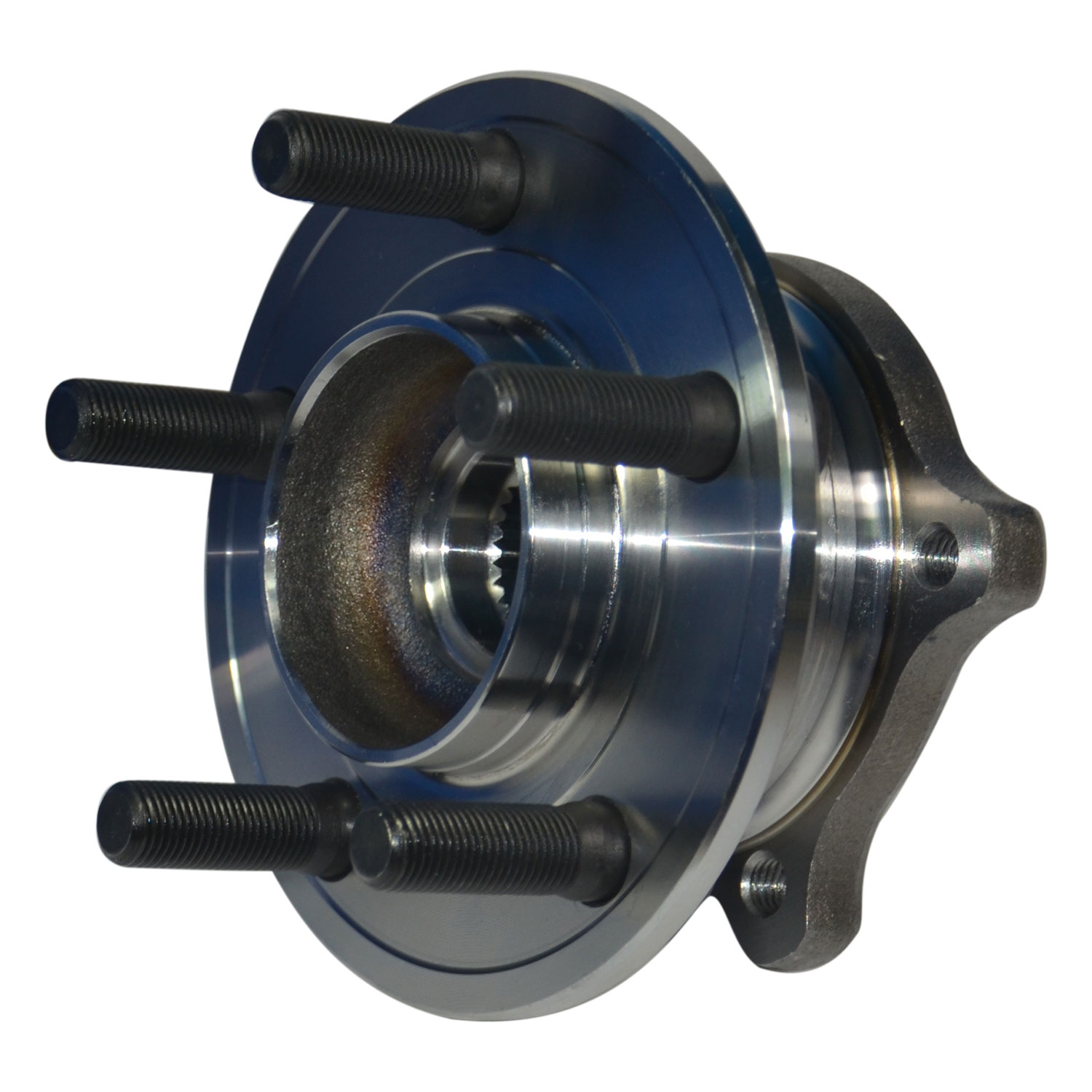

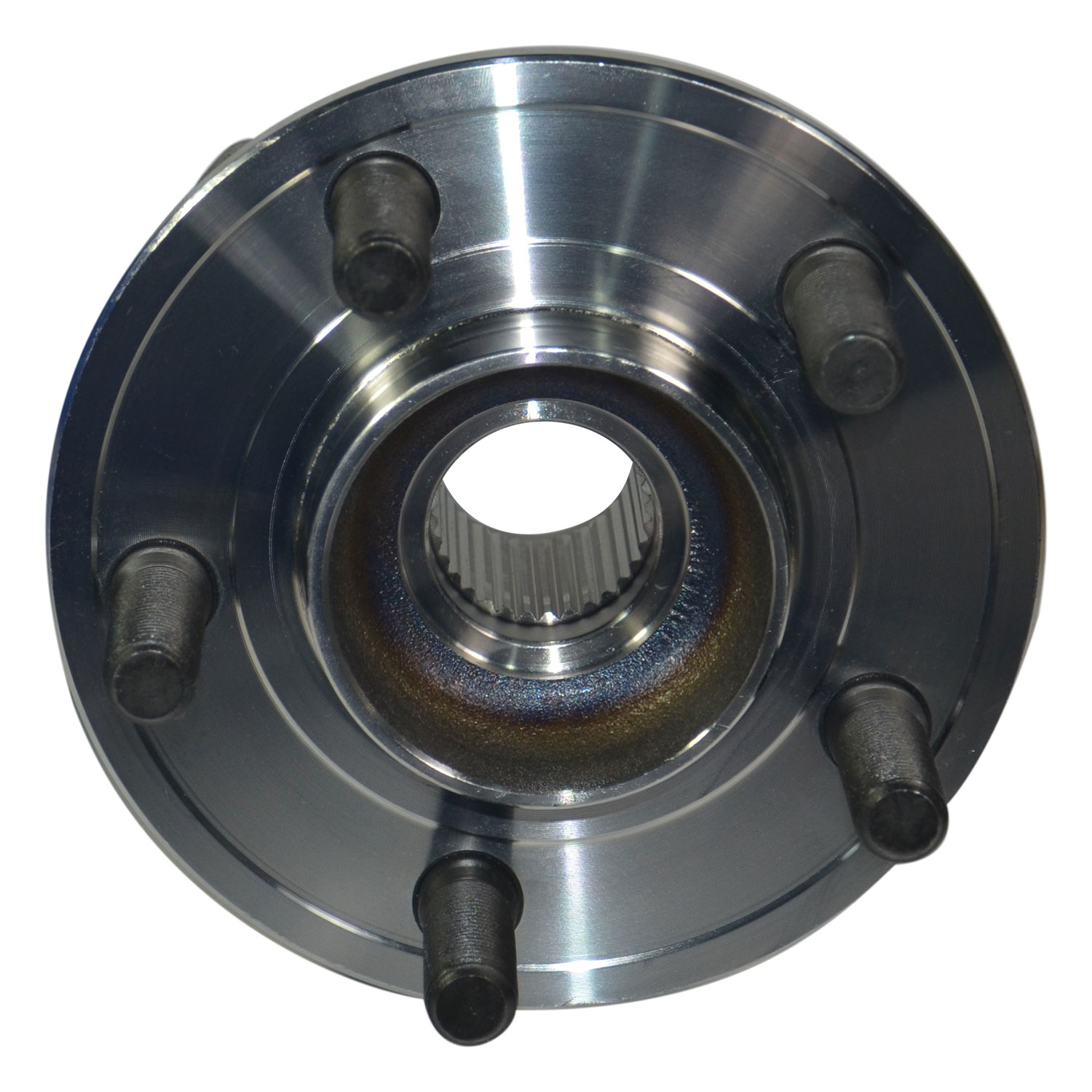

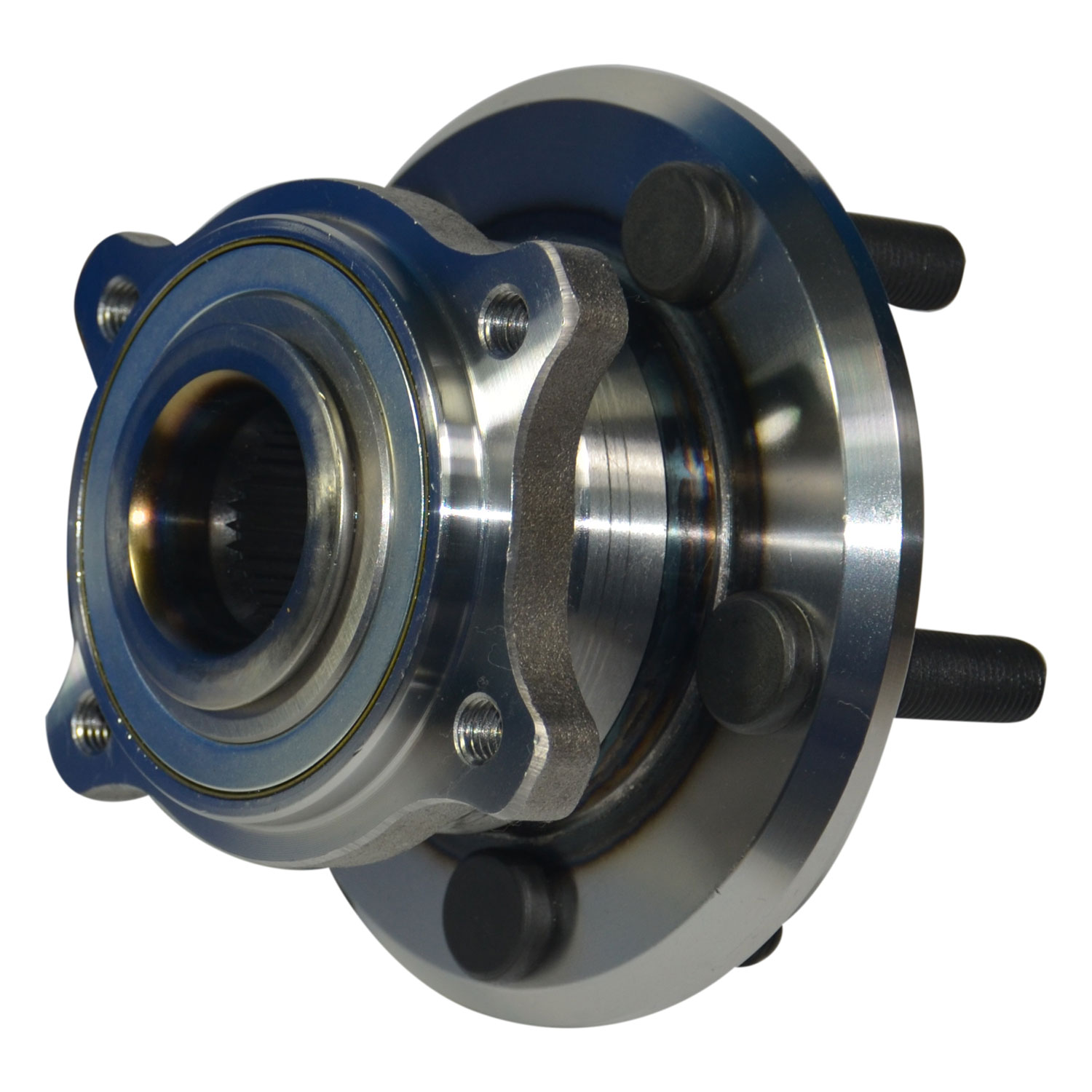

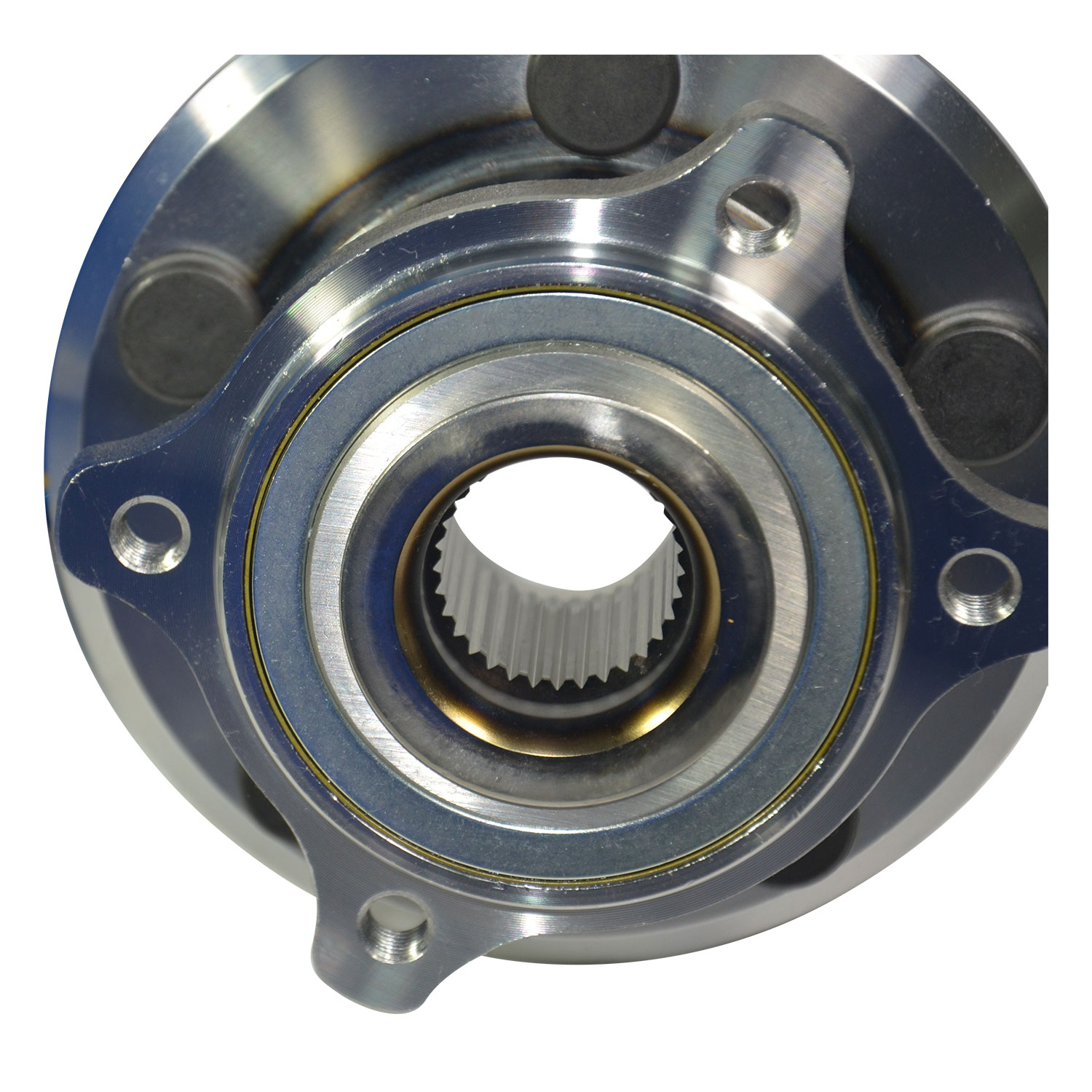

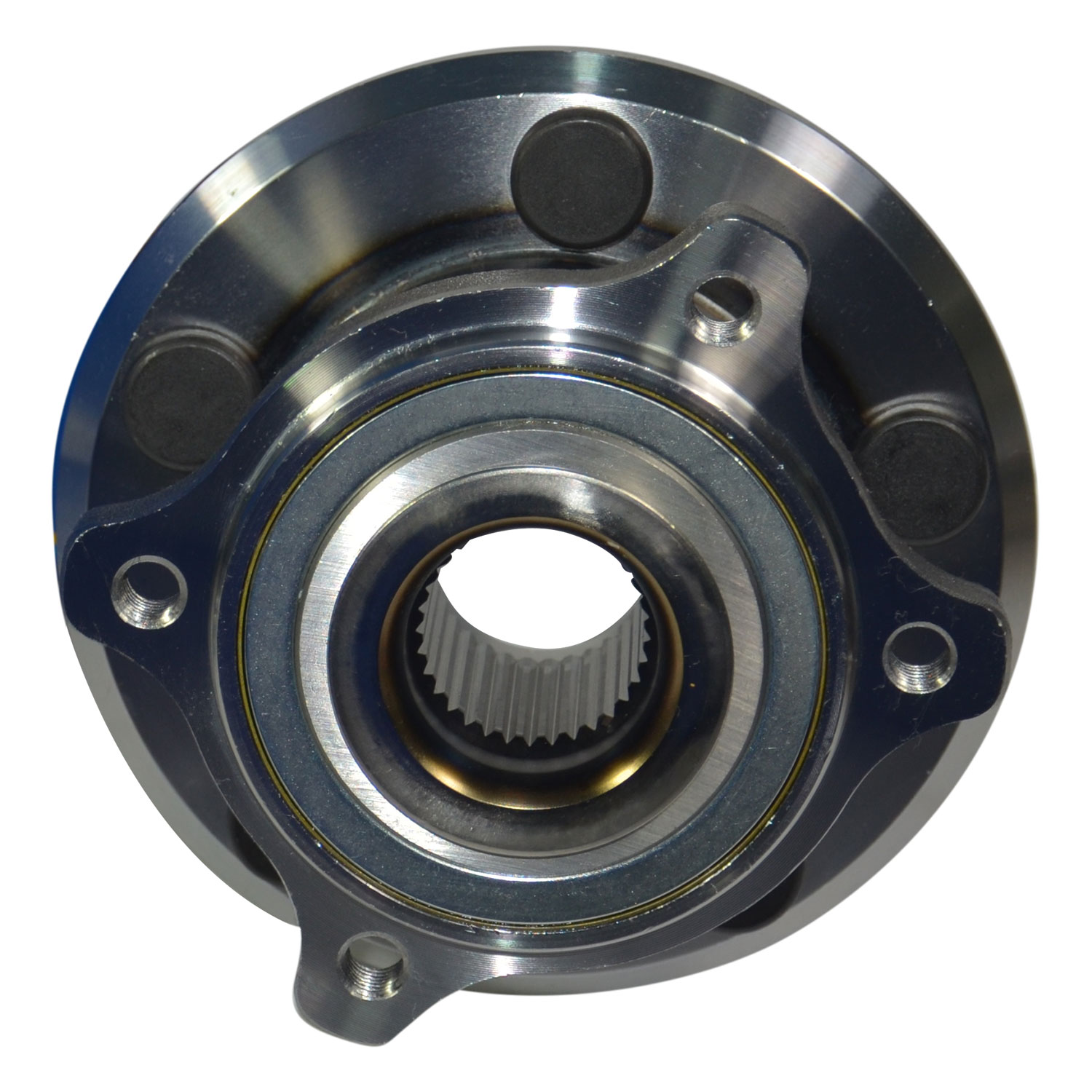

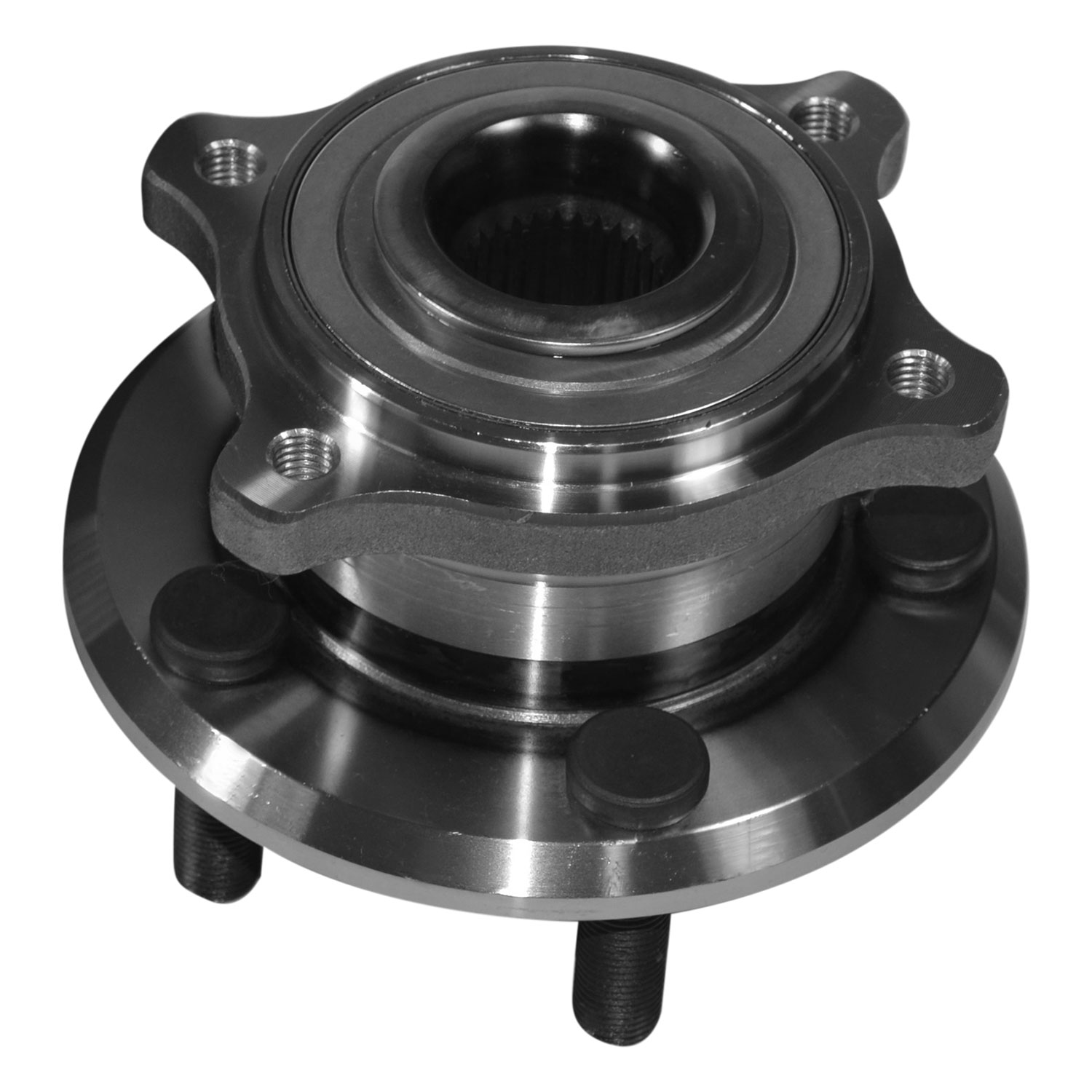

Chrysler, Dodge Wheel Bearing and Hub Assembly - Rear
SPECIFICATIONS
Anti Lock Braking System
No
Bearing Type
Ball
Bolt Thread Pitch
M14×1.5
Brake Pilot Diameter
72.5
Driven Type
Driven
Flange Bolts Included
No
Flange Included
Yes
Hub Pilot Diameter
90.4
Bearing Generation
Gen 3
Bolt Circle Diameter
115
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
4
Flange Diameter
150
Flange Offset
60.2
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2012-2014 | Chrysler | 300 | Rear | |
2012-2014 | Dodge | Charger | Rear | |
2011-2014 | Chrysler | 300 | Rear | |
2011-2014 | Dodge | Challenger | Rear | |
2011-2014 | Dodge | Charger | Rear | |
2010-2010 | Chrysler | 300 | Rear | |
2010-2014 | Dodge | Charger | Rear | |
2009-2010 | Chrysler | 300 | Rear | |
2009-2009 | Chrysler | 300 | Rear | |
2009-2014 | Chrysler | 300 | Rear | |
2009-2010 | Dodge | Challenger | Rear | |
2009-2014 | Dodge | Challenger | Rear | |
2009-2010 | Dodge | Charger | Rear | |
2009-2009 | Dodge | Charger | Pursuit, SE, R/T | Rear |
