John Deere CV Axle Assembly - Rear Right

Part Number:

4104001

Product Type:

CV Axle Assembly

GSP's ATV/UTV CV Axles are built to take a beating! Cad Designed and engineered to exceed manufactures specifications. This is a heavy duty product.

SPECIFICATIONS

Axle Nut Included

Yes

Axle Nut Socket Size

30

Axle Nut Type

Castle Nut

California Proposition 65

Yes

Dynamic Damper Attached

No

Inboard Joint Type

DOJ

Outboard Joint Type

BJ

Prop 65 Yes/No

Yes

Axle Nut Length

0.85

Axle Nut Thread Size

M20X1.5-6H

Boot Material

CR

Compressed Length

25.33

Extended Length

27.03

Inboard Spline Quantity

28/31

Outboard Spline Quantity

24

Shaft Diameter

23

FEATURES & BENEFITS

● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2018-2018
John Deere
Gator XUV 560E S4
Rear Right
2018-2018
John Deere
Gator XUV 560E
Rear Right
2018-2018
John Deere
Gator XUV 590E S4
Rear Right
2018-2018
John Deere
Gator XUV 590M S4
Rear Right
2018-2018
John Deere
Gator XUV 590E
Rear Right
2018-2018
John Deere
Gator XUV 590M
Rear Right
2016-2017
John Deere
Gator XUV 560
Rear Right
2016-2017
John Deere
Gator XUV 560 S4
Rear Right
2016-2017
John Deere
Gator XUV 590i S4
Rear Right
2016-2017
John Deere
Gator XUV 590i
Rear Right
2012-2016
John Deere
Gator XUV 550 S4
Rear Right
2012-2016
John Deere
Gator XUV 550
Rear Right

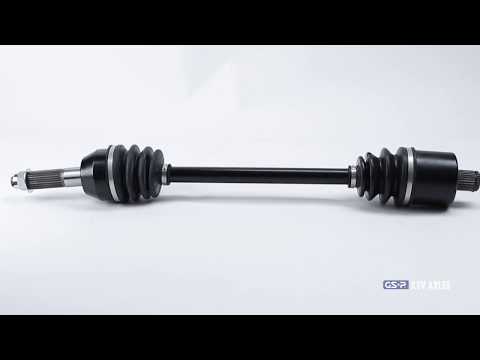

VIDEO
