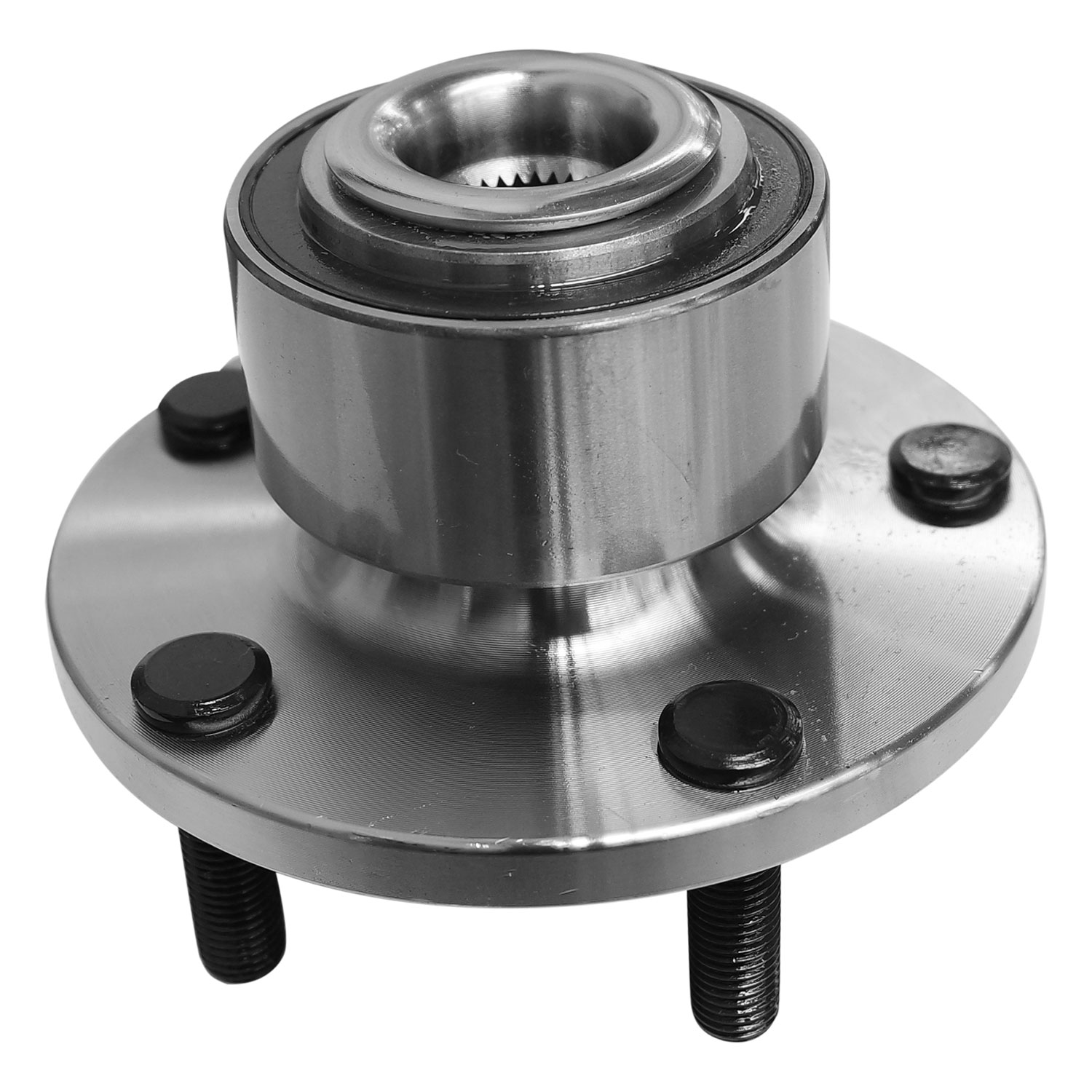

04-09 Mazda 3 (2.0, 2.3) Wheel Bearing and Hub Assembly - Front
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
44
Anti Lock Braking System Type
Encoder
Bearing Type
Ball
Bolt Thread Pitch
M12×1.5
Brake Pilot Diameter
72
Driven Type
Driven
Flange Bolts Included
No
Flange Included
Yes
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
114.3
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
0
Flange Diameter
138
Flange Offset
61.5
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2006-2009 | Mazda | 3 | i | Front |
2006-2008 | Mazda | 3 | S | Front |
2005-2005 | Mazda | 3 | SP23 | Front |
2004-2005 | Mazda | 3 | i, S | Front |
