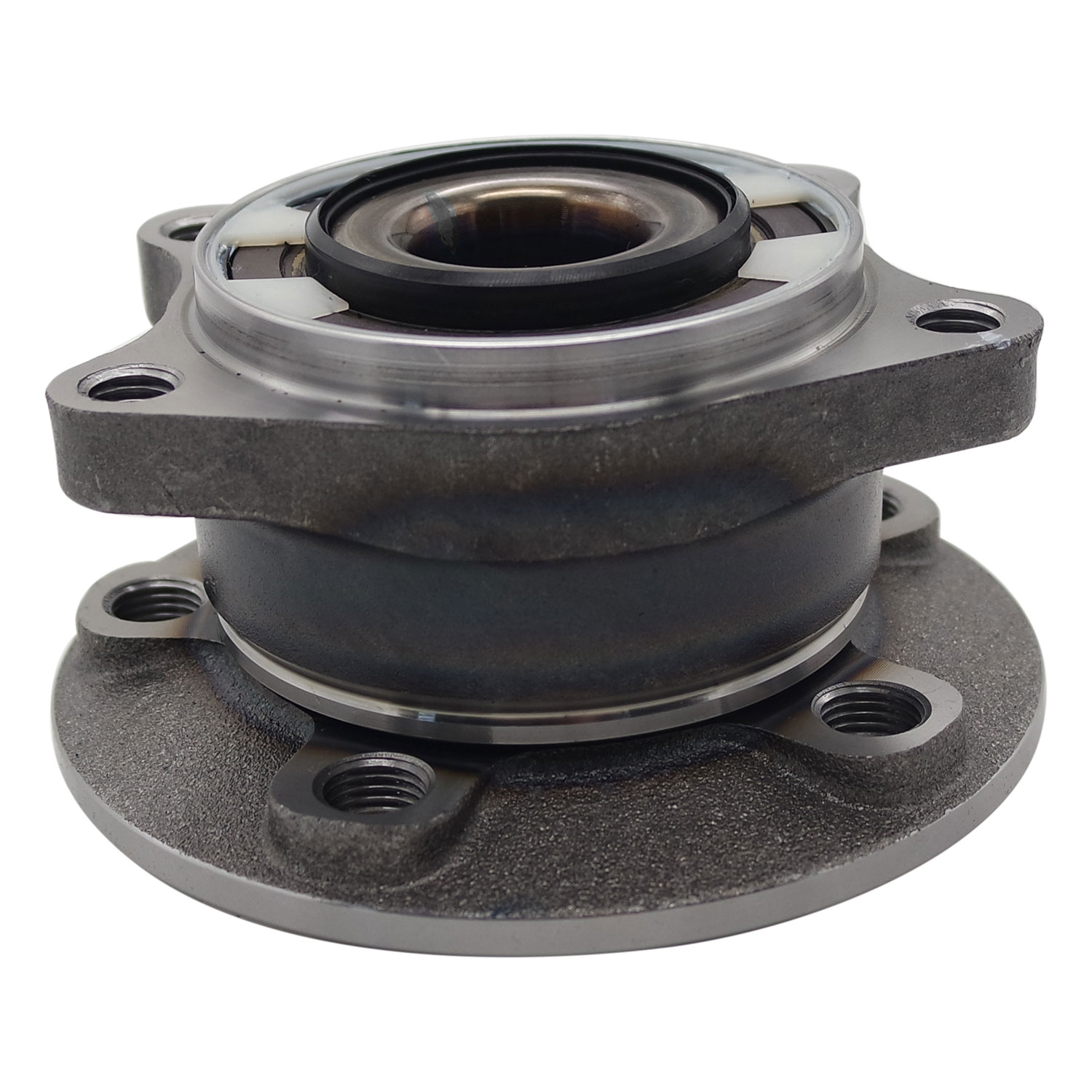

03-14 Volvo XC90 (2.5, 2.9, 3.2, 4.4 - AWD) Wheel Bearing and Hub Assembly
SPECIFICATIONS
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
108
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
4
Flange Diameter
136
Flange Offset
59
Anti Lock Braking System Type
Encoder
Bearing Type
Ball
Bolt Thread Pitch
M14×1.5
Brake Pilot Diameter
68
Driven Type
Driven
Flange Bolts Included
No
Flange Included
Yes
Hub Pilot Diameter
87.5
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2013-2014 | Volvo | XC90 | 3.2 R-Design | Rear Right, Rear Left |
2010-2014 | Volvo | XC90 | 3.2 | Rear Right, Rear Left |
2008-2008 | Volvo | XC90 | V8 Sport | Rear |
2007-2007 | Volvo | XC90 | V8 Sport | Rear |
2007-2009 | Volvo | XC90 | 3.2 | Rear Left, Rear Right |
2006-2006 | Volvo | XC90 | V8 Ocean Race | Rear |
2005-2011 | Volvo | XC90 | V8 | Rear |
2004-2006 | Volvo | XC90 | 2.5T | Rear Left, Rear Right |
2003-2005 | Volvo | XC90 | T6 | Rear Left, Rear Right |
2003-2003 | Volvo | XC90 | Base | Rear Left, Rear Right |
