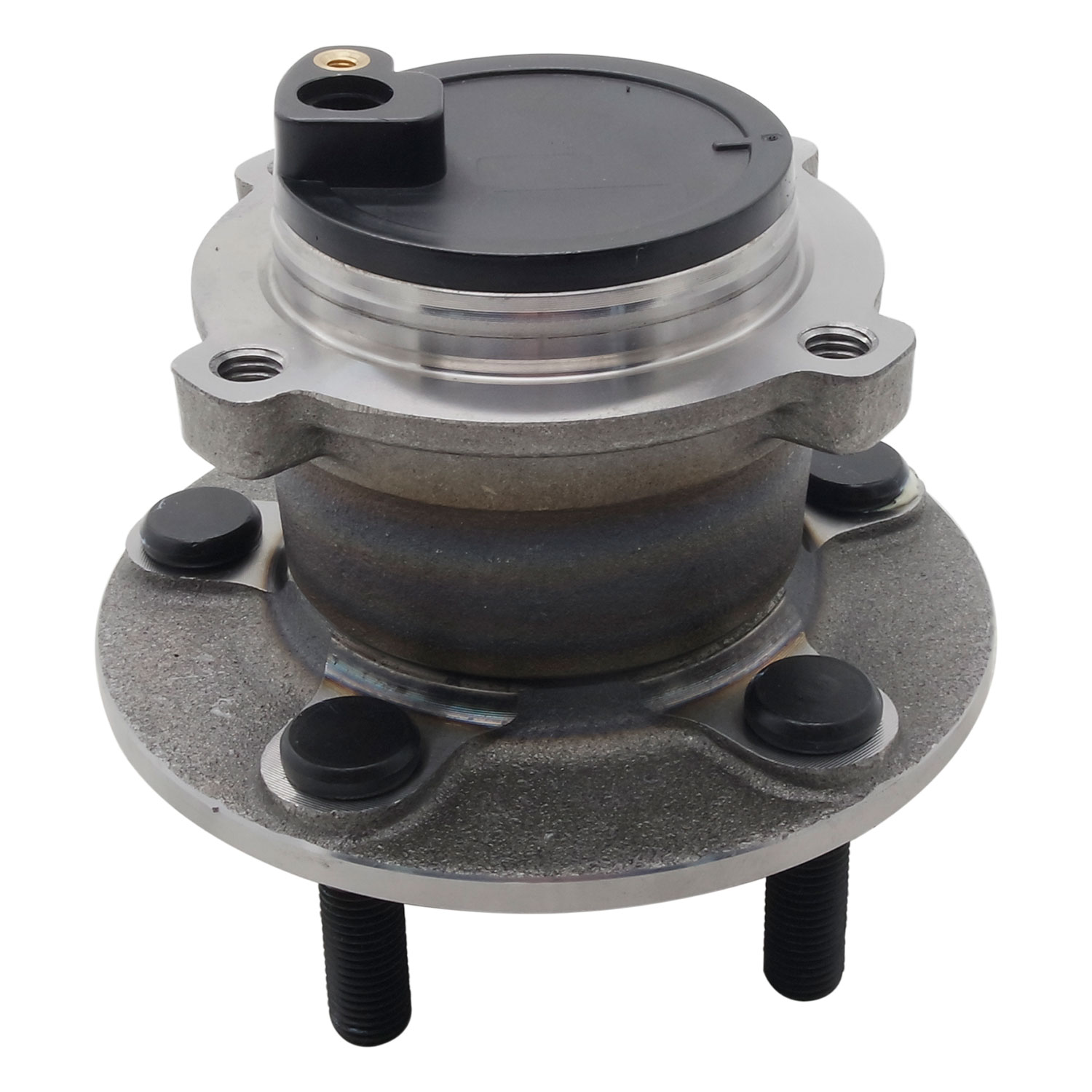

Volvo (2.4, 2.5 - FWD) Wheel Bearing and Hub Assembly - Rear
SPECIFICATIONS
Anti Lock Braking System
Yes
Bearing Generation
Gen 3(solid)
Bolt Circle Diameter
107.95
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
4
Flange Diameter
136
Flange Offset
63.17
Anti Lock Braking System Type
Sensor
Bearing Type
Ball
Bolt Thread Pitch
M12×1.5
Brake Pilot Diameter
63.5
Driven Type
Non-driven
Flange Bolts Included
No
Flange Included
Yes
Hub Pilot Diameter
74
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2011-2011 | Volvo | S40 | T5, T5 R-Design | Rear |
2011-2011 | Volvo | V50 | T5, T5 R-Design | Rear |
2010-2013 | Volvo | C70 | T5 | Rear |
2008-2013 | Volvo | C30 | T5 R-Design, T5 | Rear |
2007-2009 | Volvo | S40 | T5 | Rear |
2006-2009 | Volvo | C70 | T5 | Rear |
2006-2010 | Volvo | S40 | 2.4i | Rear |
2006-2010 | Volvo | V50 | 2.4i | Rear |
2005-2006 | Volvo | S40 | T5 | Rear |
2005-2008 | Volvo | V50 | T5 | Rear |
2005-2005 | Volvo | V50 | i | Rear |
2004-2005 | Volvo | S40 | i | Rear |
2004-2004 | Volvo | S40 | T5 | Rear |
